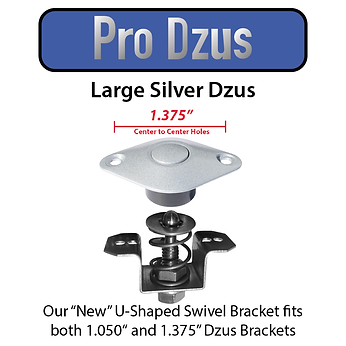

This "Pro Series" latch has the best of the best parts we could combine. This latch will pop rivet into the same hole spacing as your current Large dzus fasteners with a hole spacing of 1.375 from Center to center of the pop rivet holes. Our u-shaped bracket will pop rivets from underneath your existing dzus bracket with a spacing of (1.050 or 1.375" C/C pop rivets.)
The latch body is CNC machined from 6061 Aircraft Aluminum. All stainless steel interior ( Bearing Support, Ball Bearing, Internal Spring. The stud assembly (U-Shaped Bracket, Stud, Nuts, Washers, Lift Spring) is all stainless steel as well.
We rate this latch at 400 LBS.
But watch the video We see numbers in the 600 lbs also.
This latch will give you many many years of good service.
